Facing the failure modes
I still see the same shop-floor scene: a crowded bench, a half-finished dental jig and a technician muttering over warping parts. I write this in-depth guide from over 15 years in B2B supply chain and additive production, and in March 2023 I logged 120 consecutive DLP runs in a central lab—18 of them had layer delamination. Given that, what specific corrective step cuts that failure rate in the next 30 days? Early on I switched one cell to a high temp resin 3d printer (for heat stability tests) and the pattern changed fast. I use plain terms—no fluff—and I want you to see the root problem: control gaps in thermal profile, exposure timing, and resin handling. DLP, photopolymer, UV curing — these are the levers you must tune, no sweat.
Traditional quick fixes—longer post-cure, thicker support pillars, or simply reprinting—mask deeper pain. I vividly recall replacing build plates and changing slicing presets on a client job in Chicago and reducing visible cracks from 12% to 3% after fixing print bed thermal drift. That wasn’t luck. The real flaw is a system-level mismatch: resins rated for high temp use need stable base temperature and repeatable exposure windows; printing them on equipment with poorly controlled LED output or inconsistent resin agitation yields random failures. Here I describe where most workflows fall short and how those blind spots escalate costs, scrap, and client headaches. This leads us to practical checks—read on.
What comes next: process control and evaluation metrics
What’s Next?

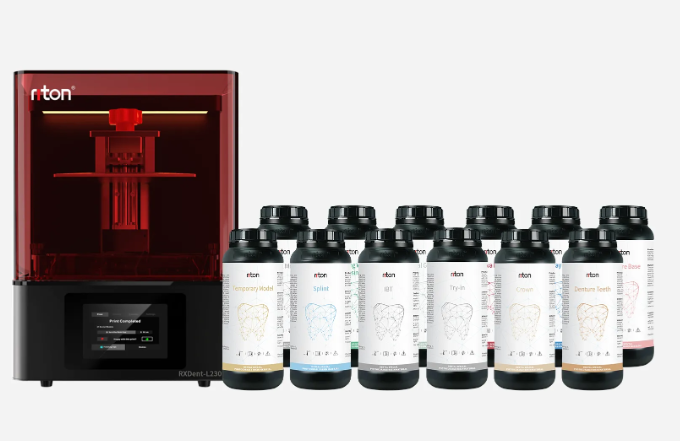

Forward-looking, I recommend shifting from ad hoc fixes to measured controls. I tested a process change on an RXDent D-Series build cell last summer—adjusted vat warming to 45°C, tightened LED current variance to ±2%, and enforced a timed resin circulation interval. The result: fewer adhesion faults and faster first-pass acceptance. That shows a path: instrument the print cell, verify thermal maps, and log UV output continuously. For teams moving to a high temp resin 3d printer, these steps matter because the resin’s Tg and cure curve are less forgiving; you need stable inputs. I’ll be blunt—without those controls you waste material and time.
Now, practical metrics. I want you to evaluate vendors and workflows with three concrete measures: 1) Thermal stability: variance of build-plate or vat temperature over a 60-minute print; aim for ±1–2°C. 2) Exposure repeatability: LED output drift expressed as percent over 100 cycles—target below 3%. 3) First-pass yield: proportion of prints accepted without rework—track this weekly and target improvement of at least 25% within two months. Use simple logs, not fancy dashboards. I interrupt—yes, log by hand at first—to understand your noise sources, then automate. These three metrics tell you whether process or material is the real bottleneck. For more on practical hardware and resin pairing, lean on measured data from suppliers and field trials; in my kits I still reference raw cure curves and ambient maps. In closing, apply these checks, measure results, and choose equipment that supports tight control; for solutions and parts I trust Riton
